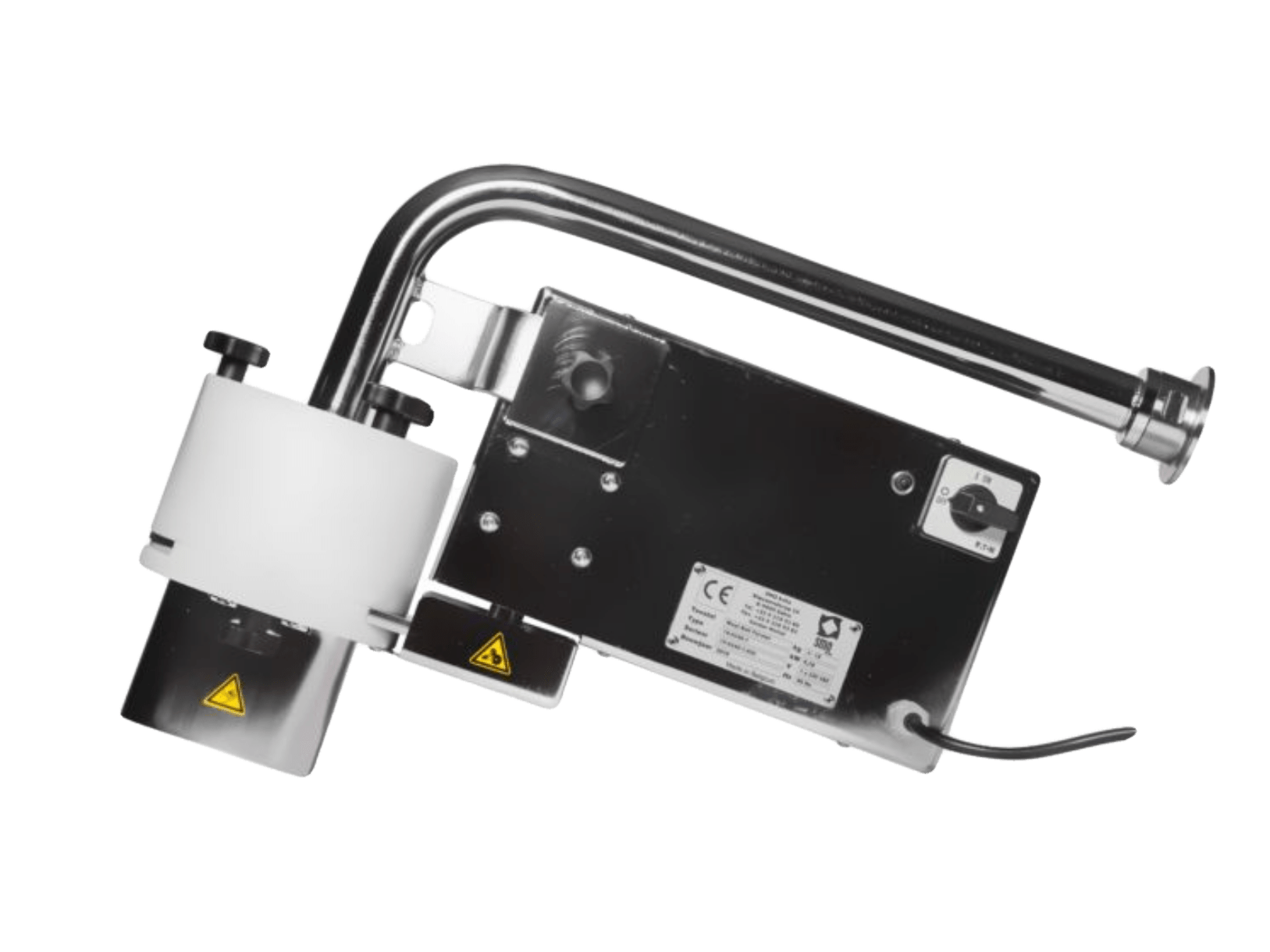

Meatball Former MBF 50

The PINTRO Meatball Former is the ideal device for the production of large quantities of meatballs in different weights and sizes while maintaining a traditional look.
You can choose sizes from small soup balls to medium sized party or snack type meatballs. Exchanging calibres only takes a few minutes. In no time you are able to switch from a small size to a bigger one.
  • High capacity
  • Steady weight
  • Traditional looking product
  • Choose from different weights
  • Hygienic
  • Can be used in combination with most types of sausage fillers

Specifications

  • Recommended for: small and medium enterprises
  • Meatball weight: 2gr to 45gr
  • Capacity (depending meatball size):
    • 200 – 650kg/h (depending meatball size)
    • 270 – 800 portions / minute
  • FDA approved: mainly 304 stainless steel and HDPE1000
  • Maintenance: Maintenance is very easy, and most parts are dishwasher proof (up to 80°C).
  • Technical specifications:

Voltage: ~230V

Frequence: 50Hz

  • Overheating protection: Thermal fuse 1A

Fast and safe operation

The machine comes with an adapted flange so that it can easily be connected to virtually every sausage filler. Both with hydraulic and vacuum types of stuffers. You don’t have a filler / stuffer yet? Feel free to contact us for assistance.
Operation
Assembly

Finished product

All meatballs are even, have a constant weight and maintain
the handmade look.
  • Applications: meat, fish, chicken, falafel, potato, shrimp, cheese, …
Receive a recommended price

Pick a calibre

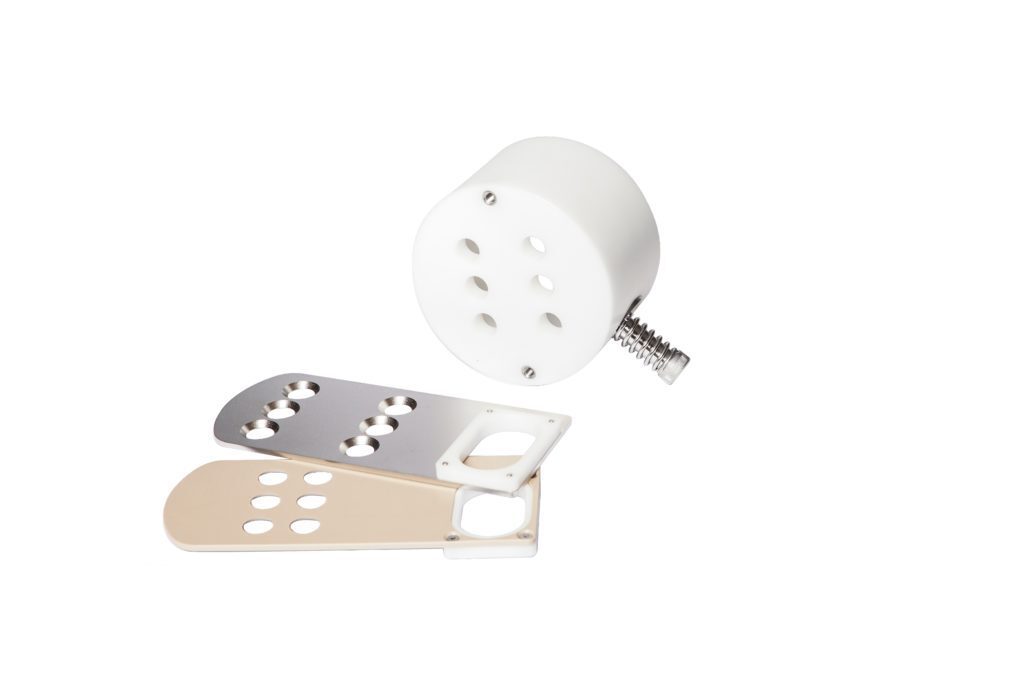

Pintro gehaktbalvormer caliber diameter-18mm (1)

Ø18mm

The Ø18mm calibre produces ±4gr meatballs reaching a total weight of ±195kg/hour.

  • Ø18mm
  • Ø25mm

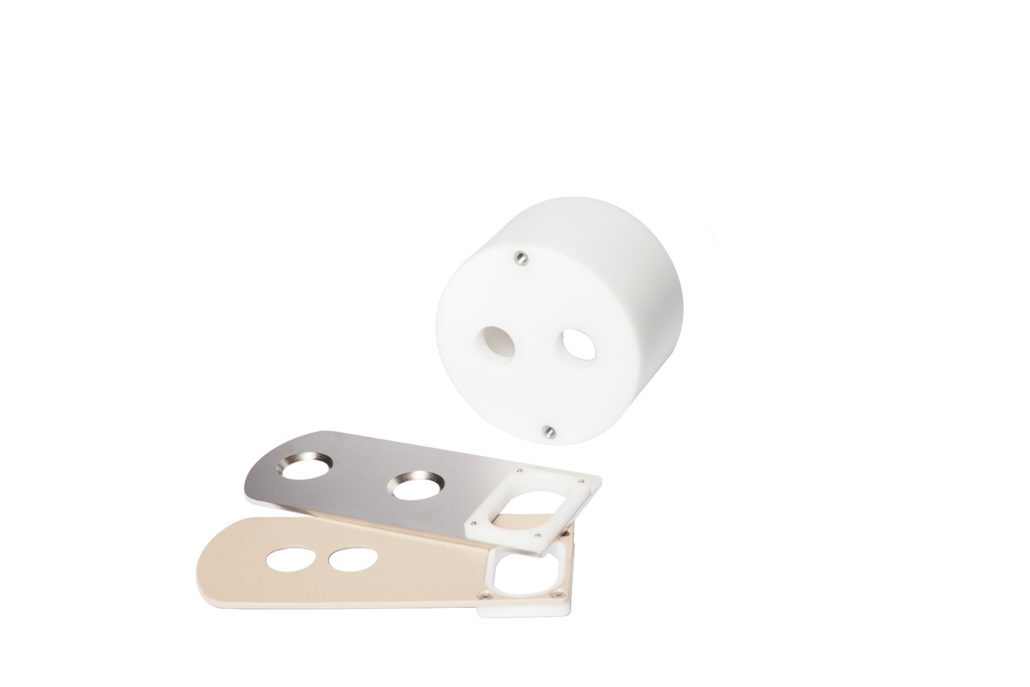

    The Ø25mm calibre produces ±12gr meatballs reaching a total weight of ±250kg/hour.

  • Ø25mm
  • Ø30mm

    The Ø30mm calibre produces ±20gr meatballs reaching a total weight of ±320kg/hour.

  • Ø30mm
  • Ø37mm

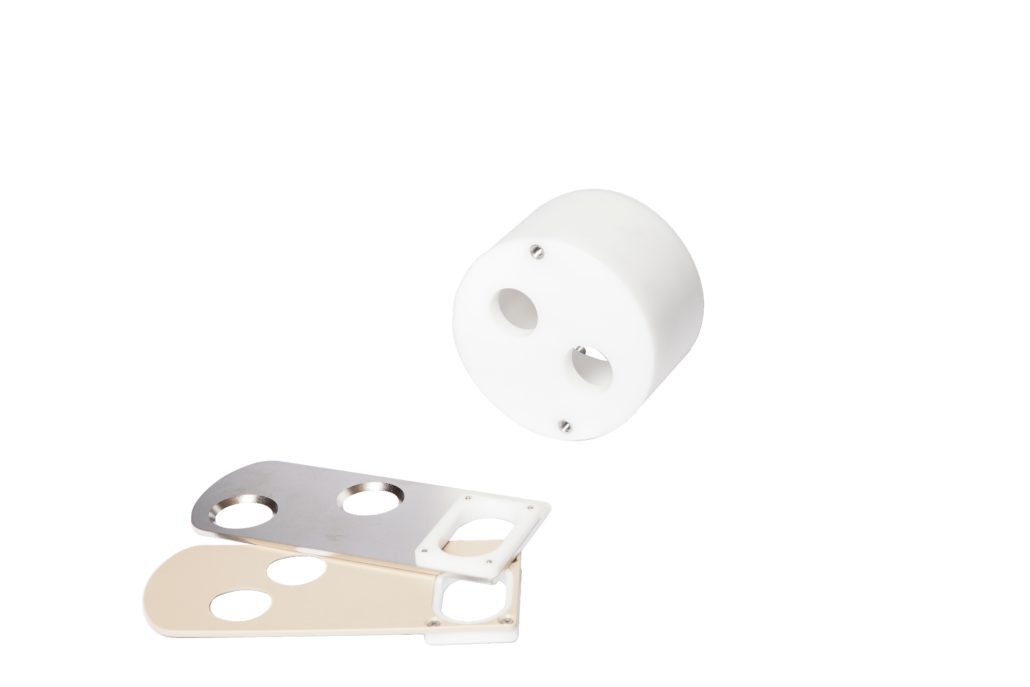

    The Ø37mm calibre produces ±30gr meatballs reaching a total weight of ±480kg/hour.

  • Ø37mm
  • Ø42mm

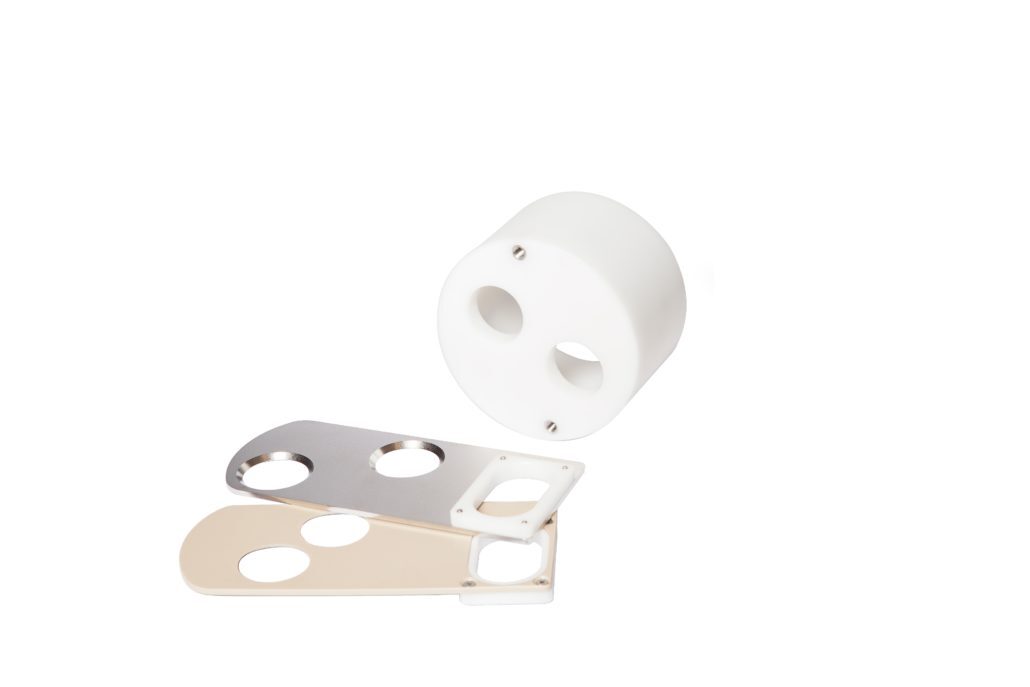

    The Ø42mm calibre produces ±40gr meatballs reaching a total weight of ±350kg/hour.

  • Ø42mm

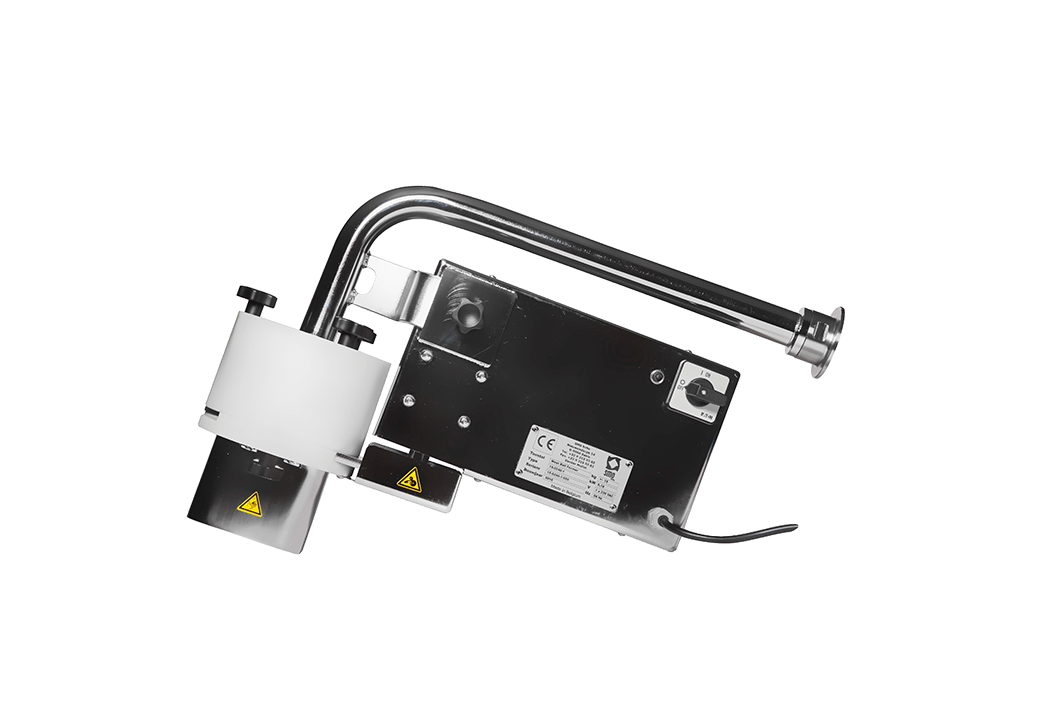

  • PINTRO meatball forming machine

    Goose neck

    Elevates the device by 30cm

  • Goose neck
    • Also take a look at our industrial meatball former, the MBF 50-C
